Brand Name : KAIDUN
Model Number : KDH-UDC-FL2028(A)
Place of Origin : China
MOQ : 1
Packaging Details : Wooden box packaging / cardboard box packaging
Delivery Time : 5-8 week
Payment Terms : T/T
Supply Ability : 5000 units/year
FHD : 1080P 200W
Lens : 2.8mm
Material : Optional Stainless Steel/Titanium alloy/Industrial plastics
Waterproof Gradation : 0-300m
Power Supply : 48VDC
Dimensions : φ30x134mm(100+34mm connector)
Weight : 0.35kg(POM as an example)
Underwater HD Coaxial Mini Bullet Camera
Key Features
Service
Application Scenarios
Other Application Scenarios:Pipeline Maintenance;Underwater exploration etc
Parameters
| Name | Underwater HD Coaxial Mini Bullet Camera |
| Type | KDH-UDC-FL2028(A) |
| Key specifications | |
| Image Sensor | 1/2.8 color AHD CMOS NVP2441H+IMX307 Stellar |
| System mode | AHD coaxial HD |
| FHD | 1080P 200W |
| Minimum Illumination | 0.0001LUX/F1.2 |
| Day-night mode | External control (default)/automatic/color/black and white |
| Lens | |
| Lens | 2.8mm |
| Focal Length | Standard zoom |
| Function Support 220 preset positions;support 8 cruise scans and each can add 32 preset points; | |
| Function | Support front-end storage playback/download; Support OSD menu,and UTC function; Can be customized according to different needs; |
| General | |
| Material | Optional stainless steel/titanium alloy/industrial plastics |
| Waterproof gradation | 0-300m |
| Power supply | 48VDC |
| Operating temperature | -30℃~+60℃ |
| Dimensions | φ30x134mm(100+34mm connector) |
| Weight | 0.35Kg(POM as an example) |
| Accessories | |
| Package | Cable,adapter,warranty card,certificate,suppression report |
| Customizable | Depth Sensor(temperature,pressure...) Display control terminal |

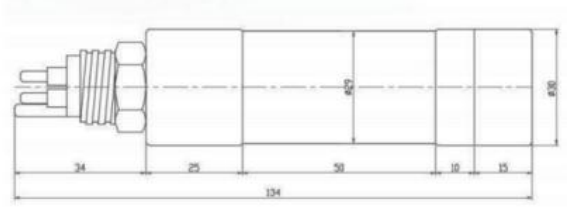

Dimensions

Products

|
|
Underwater HD Coaxial Mini Bullet Camera Images |
